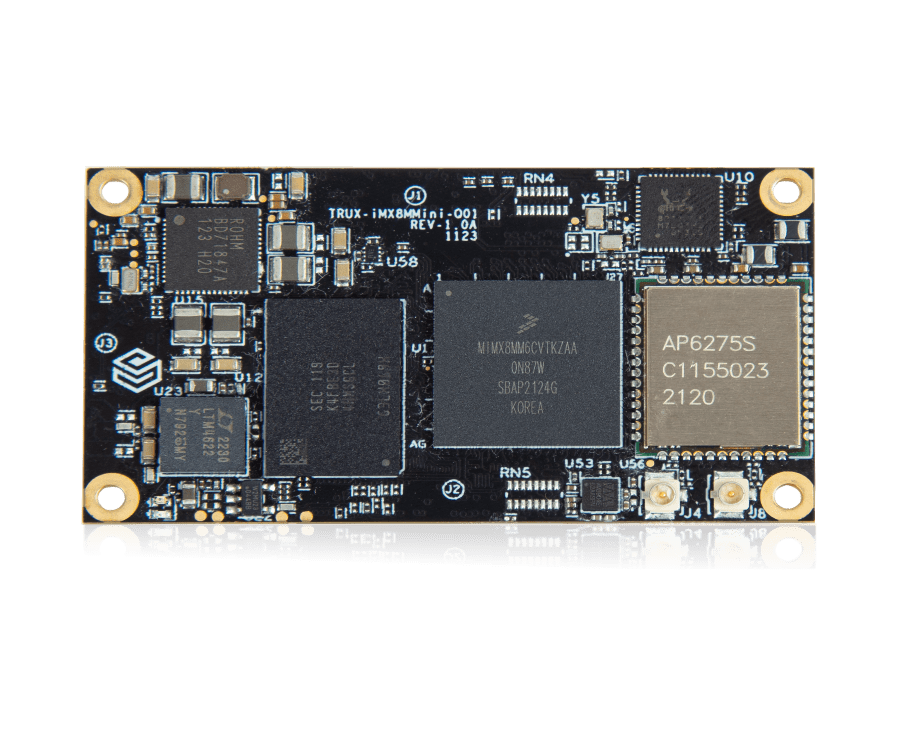

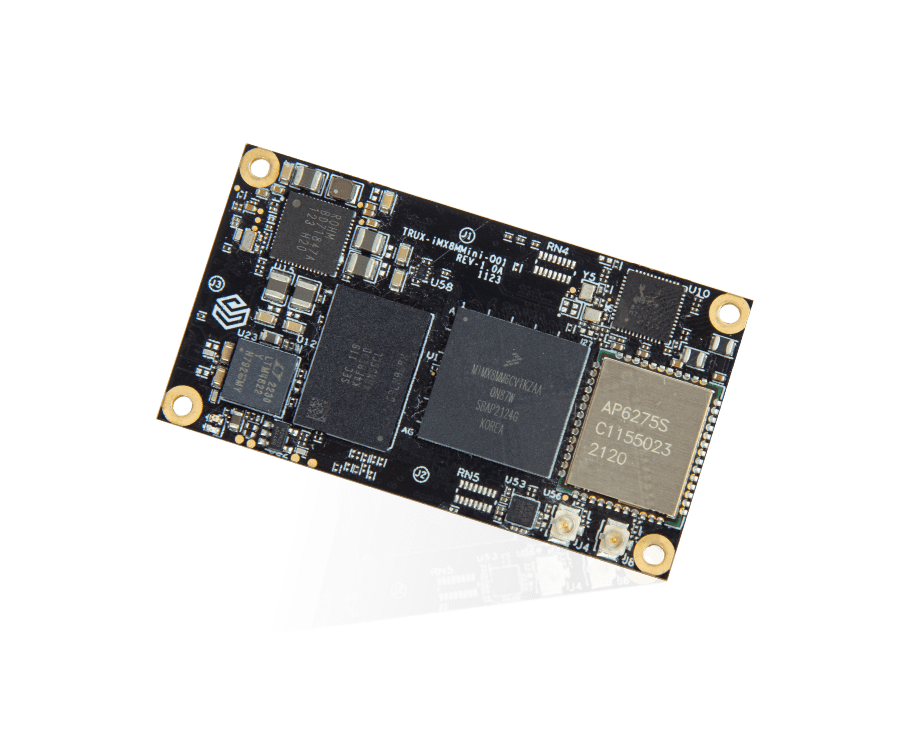

TRUX-iMX8MMini-Q01

  • CPU Name: NXP i.MX 8M Mini
  • Architecture: Quad Core ARM Cortex-A53@1.5GHz speed, Cortex-M4
  • RAM: 1GB – 4GB LPDDR4
  • Memory: 8GB – 32GB eMMC
  • OS Support: Linux 5.4.1, Android 11
 Compare to other products

Description

The TRUX-iMX8MMini-Q01, computing module is based on an NXP i.MX 8M Mini Quad processor implementing ARM Cortex–A53 up to 1.8GHz and Cortex-M4, supporting up to 400MHz speed for many industrial, embedded consumer, and IOT applications.

System on Module offers an ideal solution for embedded systems that require high-end multimedia applications in a small form factor, as well as portable and battery-operated products.

TRUX-iMX8MMini-Q01 is part of the iMX8 SOM family, which supports a pin2pin scalable option with
TRUX-iMX8M-Q01 system on module.

This SoM is aimed to offer applications such as Digital Media Adaptors, HD Digital signage, Industrial HMI, Building Automation, Imaging and scanning, Audio/Video Streaming devices, and Machine Vision applications.

Specification

Features:
  • CPU: 1.8 GHz Quad CortexTM-A53 NXP i.MX8M Mini
  • Controller: Arm CortexTM-M4F
    3D GPU (1x shader, OpenGL® ES 2.0)
    2D GPU, Arm® Trustzone®
Peripherals:
Memory:
  • RAM: LPDDR4 (1GB – 4GB)
  • Flash: eMMC (8 GB – 32 GB)
  • 1 x MIPICSI
  • 1 x NAND
  • 1 x eMMC
  • 1 x Gbit Ethernet
  • 1 x PCI Express (Gen 2.0)
  • 1 x DSI
  • 4 x I2C
  • 3 x SPI
  • 1 x JTAG
  • 2 x USB 2.0 (OTG)
  • 4 x SD/MMCx3UART
  • GPIOs
  • Boot Mode Signals
  • Digital Audio serial
  • Interface: I2S (SAI), S/PDIF
Multimedia:
  • 3D: GPU(1 x shader, OpenGL® ES 2.0)
  • 2D GPU
  • Video Encode/Decode: 1080p60 HEVC/H.265, H.264 VPB Encoder/-Decoder
  • Camera Interfaces: 1 x MIPI-CSI
Security:
  • Crypto Authentication
Security:
  • DSI: MIPI-DSI 1920×1080 24-bit
  • Touch controller: Resistive, Capacitive
Connectivity:
  • Ethernet: 10/100/1000 Mbps with AVB and EEE
  • Wi-Fi: Certified 802.11 ac/a/b/g/n
  • Bluetooth: 4.2 / BLE
Power Supply:
  • 3.3V to 5V
Supported Temperature:
  • 0°C to +70°C Commercial
  • -40°C to +85°C Industrial
OS support:
  • Linux, Android
Dimension:
  • 55.1 mm x 30.2 mm
Peripherals:
  • 2 x CSI
  • 1 x NAND
  • 1 x eMMC
  • 1 x Gbit Ethernet
  • 2 (Gen 2.0) x PCI Express
  • 1 x DSI
  • 1 x HDMI
  • 3 x I2C
  • 3 x SPI
  • 1 x JTAG
  • 2 x USB 3.0/2.0 (OTG)
  • 1 x SD/MMC
  • 4 x UART
  • GPIOs
  • Boot Mode Signals
  • Digital Audio serial interface : I2S (SAI), S/PDIF



Ordering Info

Part Number TRUX- iMX8MMini-Q01- D1G-E8G-C TRUX- iMX8MMini-Q01- D1G-E16G-C TRUX- iMX8MMini-Q01-D4G-E16G- C TRUX- iMX8MMini-Q01-D4G- E32G-C
Clock Speed 1800 MHz 1800 MHz 1800 MHz 1800 MHz
RAM 1 GB 1 GB 4 GB 4 GB
Flash 8 GB 16 GB 16 GB 32 GB
Operating temperature 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C
Part Number TRUX-iMX8MMini-Q01-D1G-E8G-I TRUX-iMX8MMini-Q01-D1G-E16G-I TRUX-iMX8MMini-Q01-D4G-E16G-I TRUX-iMX8MMini-Q01-D4G-E32G-I
Clock Speed 1600 MHz 1600 MHz 1600 MHz 1600 MHz
RAM 1 GB 1 GB 4 GB 4 GB
Flash 8 GB 16 GB 16 GB 32 GB
Operating temperature -40°C to +85°C -40°C to +85°C -40°C to +85°C -40°C to +85°C
